INTRODUCTION

_images/FS1_Assembly_with_Baffle.jpeg

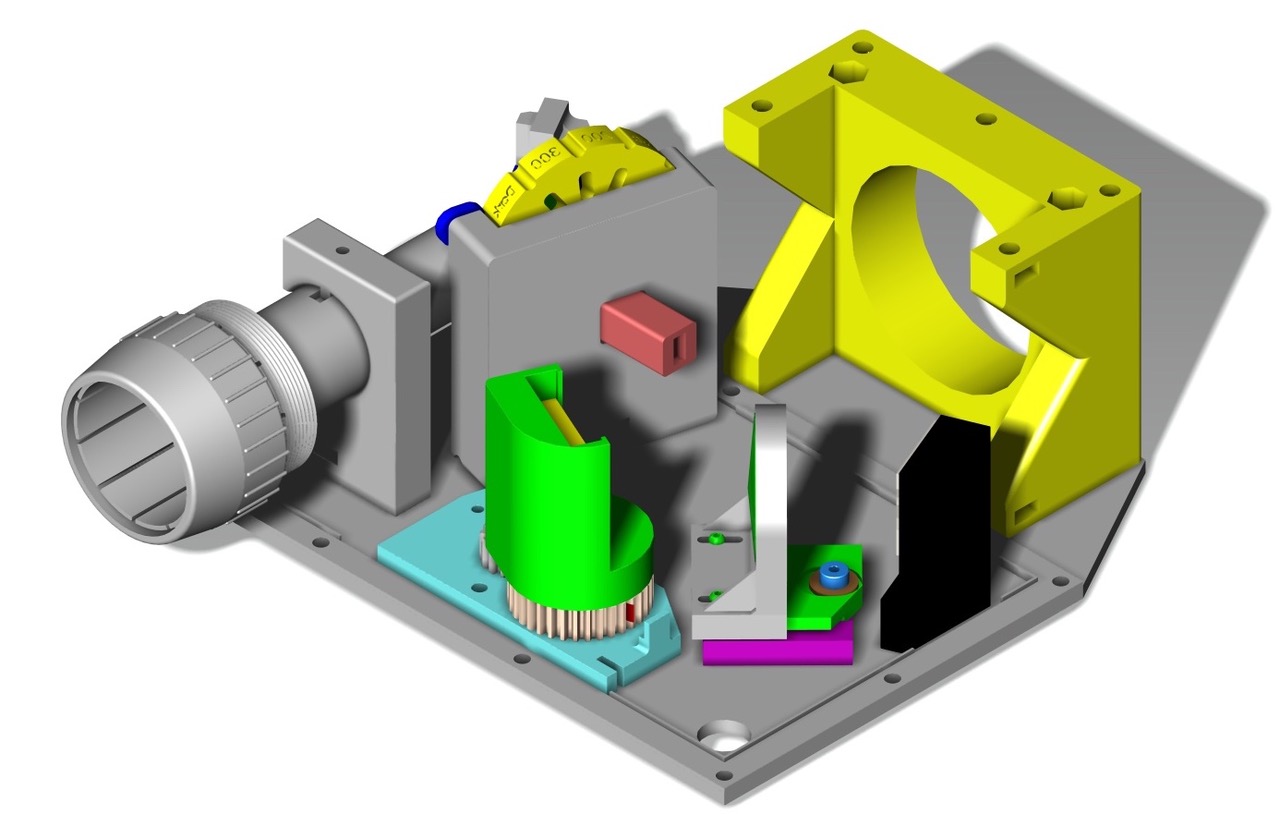

CAD Layout for optical components of the FlexSpec 1.

The spectroscopist wants what they want. The spectrograph gives what it will. One must strike the Faustian bargain that may only be paid with the coin of credibility. Choose wisely.

The FlexSpec1 (FS1) spectrograph grew out of a segmented analysis of the entire impact on a spectrum starting with the Source signal; through a telescope’s optical tube assembly (OTA); through the focal plane; through the spectrograph; and into the sensor. This article limits all variables from the Source to the OTA to one parameter: the Parallactic Angle.

to those involving the impact of the atmosphere (parallactic angle), the effective focal length of the main OTA, and relationship of the OTA to the device injecting a calibration lamp signal (Herein the Kzin ring).

Only the flux distortions taking place between the Source (a Star, Planet, Calibration Lamp) are considered up to the

Ramifications of 3D printing leading to FlexSpec 1 (FS1): Introducing the Flexible Spectrograph I Small Telescope Spectrograph.

This is documentation, the project and our aspirations for developing a science data quality 3D spectrograph that is ‘Flexible’.

It is a continuous in progress. Bear with us. Better yet, collaborate with us.

The STL and STEP files, EDA and CAD files and the software may be cloned from the FlesSpec1 Github Repository here.
